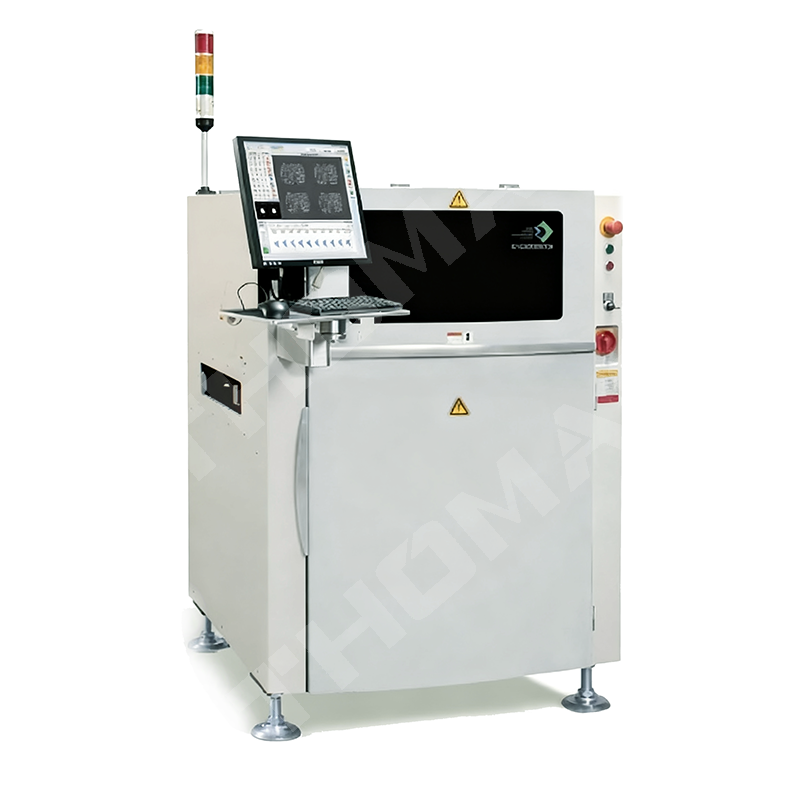

DEK NEOHORIZON 03iX — Precision & High-Speed Solder Paste Printing for SMT

The DEK NEOHORIZON 03iX (also marketed as DEK 03iX or NeoHorizon 03iX) is a state-of-the-art Solder Paste Printer / SMT Stencil Printer that delivers exceptional printing accuracy, high throughput, and flexible printing capability to meet the demands of modern electronics manufacturing. As a precision printing solution, it is widely used in SMT assembly lines where solder paste deposition quality, stencil alignment precision, and process repeatability are critical.

🔧 Key Features & Capabilities

• High-Precision Printing & Alignment

• Machine alignment capability is ± 12.5 µm @ 2.0 CmK (6-sigma), ensuring repeatable, precise stencil-to-board alignment.

• Wet paste printing accuracy across the board is often within ± 20–25 µm (depending on configuration) @ 2.0 CpK, making it suitable for fine-pitch, high-density boards and demanding solder-paste requirements.

• High-Speed Solder Paste Printing

• Standard core cycle time is 8 seconds + process.

• For high-mix or high-volume flows, the back-to-back / dual-track setup option increases throughput — ideal for lines with frequent product changeovers or NPIs (new product introductions).

• Large Print Area & Board Size Flexibility

• Supports a maximum printing surface of 510 × 508.5 mm, and is capable of handling larger or long-board PCBs (with optional configurations), making it versatile for various PCB sizes and assemblies.

• Supports PCB thicknesses from about 0.2 mm up to ~6 mm, allowing use in a variety of board types and substrate materials.

• Automated / Semi-automated Stencil Handling & Cleaning

• The 03iX version offers semi-automatic stencil loading and alignment (X, Y, rotation) for easier operator handling and faster changeovers.

• Under-stencil cleaning (USC) is supported — e.g. the IUSC cleaning system as standard — to ensure consistent paste transfer and to reduce defects due to stencil fouling or clogging.

• Flexible Configuration & Modular Platform

• The NeoHorizon platform is modular and can be customized with optional upgrades: e.g. enhanced camera system (higher resolution), advanced stencil cleaning (Cyclone), glue-dispensing, vacuum tooling, and other productivity tools — giving flexibility for different line requirements.

• It supports high-mix production, frequent changeovers, step-stencils, fine-pitch components, and varied substrate types, making it suitable for EMS, consumer electronics, automotive, and IoT device production.

• Smart Control, Traceability & Integration

• Uses the industry-standard control software (e.g. DEK Instinctiv™) with touchscreen interface, enabling easy setup, recipe management, and quick stencil or product changeovers.

• Supports integration into modern SMT lines with connectivity for closed-loop feedback (e.g. link with SPI for paste control), and traceability features for production records — helping with quality management and process optimization.

🎯 Why DEK 03iX Is Ideal for Modern SMT Production

• For fine-pitch components, dense PCBs, or high-precision soldering, the tight alignment and paste deposition accuracy reduce solder bridging, insufficient paste, and misprints — improving yield and reducing rework.

• For high-mix / mixed-volume production environments (frequent product changes, many board types), DEK 03iX’s flexibility and modular design allow quick reconfiguration, supporting efficiency and minimizing downtime.

• For high-volume throughput needs, the fast cycle time and dual-track/back-to-back configuration help meet output targets without sacrificing print quality.

• For process stability and consistent manufacturing — its rigid frame, precise mechanics, and stable printing performance make it a long-term investment with sustained reliability.

• For traceability, process control, and manufacturing data management — its software tools and integration capacity support quality control, process optimization, and Industry 4.0 workflows.

FAQ about Dek Neohorizon 03iX

Question : What is the delivery time?

AcceptedAnswer :30 days。

Question :What shipping method will be used for the shipment?

AcceptedAnswer :Supports sea and air freight.
