PCB Chain Conveyor: Precision Transport for Automated Quality Control

The PCB Inspection Conveyor is a specialized Automated Optical Inspection Conveyor System designed specifically for quality control stations in SMT manufacturing lines. Serving as both an AOI Conveyor and waving oven Conveyor, this advanced SMT Inspection Line Conveyor ensures optimal positioning and stability during critical inspection processes.

Key Features & Technical Specifications:

• Vibration-Free Operation: Advanced damping system eliminates mechanical vibrations that could affect inspection accuracy

• Precision Stopping Mechanism: Guarantees ±0.1mm positioning repeatability for reliable optical measurements

• Anti-Static Design: Comprehensive ESD protection prevents damage to sensitive components

• Adjustable Rail System: Tool-less width adjustment accommodates PCB sizes from 50mm × 50mm to 530mm × 530mm

• Synchronized Control: Perfectly coordinates with inspection equipment trigger signals

Advanced Inspection-Optimized Features:

• Uniform Lighting Platform: Integrated neutral background surface eliminates visual interference

• Speed Flexibility: Variable transport speeds from 0.5-2.0 m/s to match different inspection requirements

• Gentle Handling: Soft-start/stop functionality prevents component displacement

• Multi-Station Integration: Compatible with 2D/3D AOI, SPI, and X-ray inspection systems

Operational Benefits:

• Enhanced Accuracy: Stable transport eliminates false calls and measurement errors

• Increased Throughput: Optimized speed settings reduce cycle times without compromising quality

• Reduced Maintenance: Brushless drive technology and self-cleaning tracks minimize downtime

• Seamless Integration: Standard communication protocols ensure quick installation and setup

This precision PCB Chain Conveyor (detailed specifications at represents the ideal solution for manufacturers seeking to maximize their quality control efficiency while maintaining the highest standards of inspection reliability in SMT production environments.

Our next-generation PCB conveyor combines robust heavy-duty construction with intelligent modular design, delivering exceptional stability and adaptability for dynamic production environments. Featuring dual manual/automatic detection modes and instant bidirectional conveying capability, it seamlessly integrates with existing SMEMA-compatible lines while offering customizable lengths and configurable stop zones to match your layout. Operators benefit from ergonomic controls and variable speed management for effortless, precision handling. Whether optimizing flow efficiency or enabling complex multi-zone workflows, this system redefines reliability and convenience in SMT material handling.

1. Engineered for the modern SMT line, this conveyor boasts a rational and sophisticated design where form perfectly meets function, enhancing both

efficiency and workspace aesthetics.

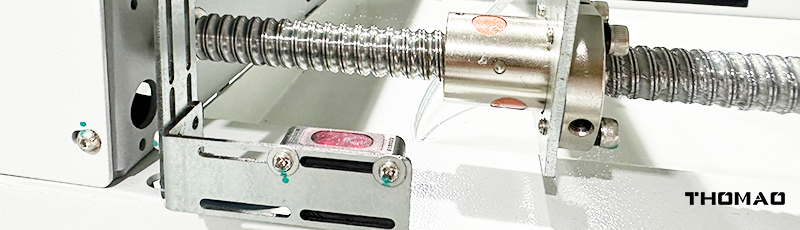

2. Engineered with ball screw mechanisms, the system achieves a level of smoothness and precision in width adjustment unmatched by conventional systems,

contributing to superior long-term reliability.

3.  The guide rails are constructed from high-strength, formed aluminum, significantly enhancing the structural rigidity and stability of the entire system.

This robust foundation allows the flat belt to transport PCBs with exceptional smoothness and precision.

FAQ about PCB Chain Conveyor

Qustion : What is the delivery time?

AcceptedAnswer :30 days。

Qustion :What shipping method will be used for the shipment?

AcceptedAnswer :Supports sea and air freight.
