SMT Feeder/Nozzle

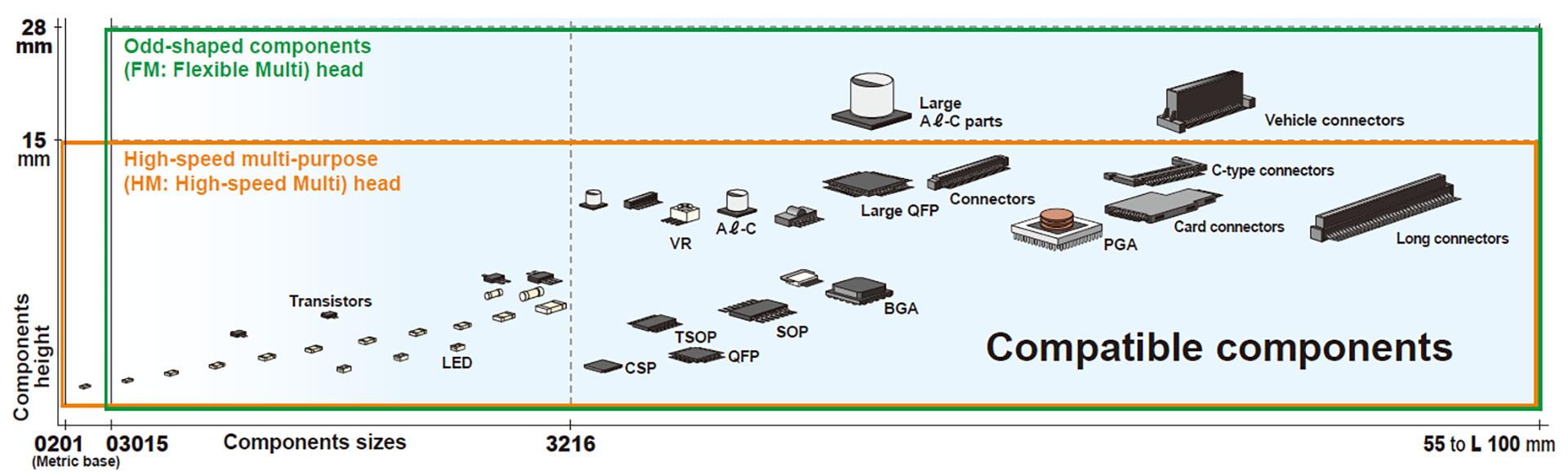

Equipped with a comprehensive set of nozzles: Powerful support capabilities!

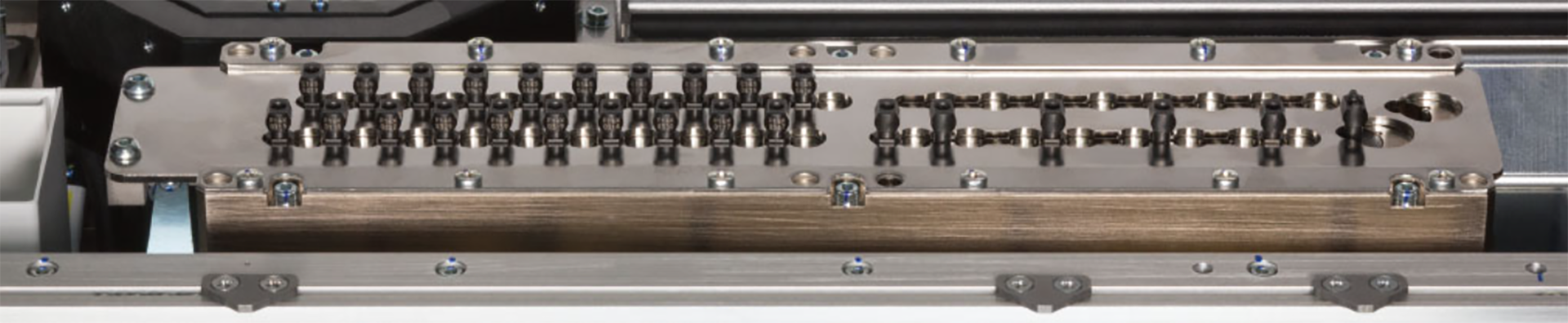

With the highly automated nozzle station, the entire process of loading and unloading nozzles is fully automated.

🔎 Compatibility & Application

Our Yamaha 310A Nozzle (KHY-M77A0-A0) fits a wide range of Yamaha pick & place SMT machines, including:

✔ Yamaha YS12 / YS12F
✔ Yamaha YS24 / YS24X
✔ Yamaha YSM10 / YSM20
✔ Yamaha YG12 / YG300

Designed for accurate component placement, this nozzle supports typical SMT manufacturing workflows with high precision.

📌 Key Features

Precision-Machined Tip
Manufactured with strict dimensional tolerance to ensure stable vacuum pickup and consistent placement accuracy.

Broad Machine Compatibility
Works with multiple Yamaha series pick & place machines, making it a universal choice for Yamaha SMT lines.

Durable Construction
Made from high-quality materials to resist wear and maintain performance even under continuous production.

Easy to Replace
Standard nozzle design allows rapid changeout, minimizing machine downtime and improving line efficiency.

📍 Typical Use Cases

✔ Replacement nozzle for Yamaha SMT machines
✔ Precision component pickup in SMT assembly
✔ EMS/OEM production environments
✔ High-speed SMT lines with mixed component sizes

🧠 Why Yamaha 310A Nozzle Matters

SMT nozzles are critical to component placement quality. A high-precision nozzle like the Yamaha 310A ensures:

• Stable vacuum performance for reliable pick-up

• Reduced mispicks and placement errors

• Consistent throughput on high-speed SMT lines

This leads to higher production yields and improved manufacturing reliability.

Yamaha SMT Nozzle List
